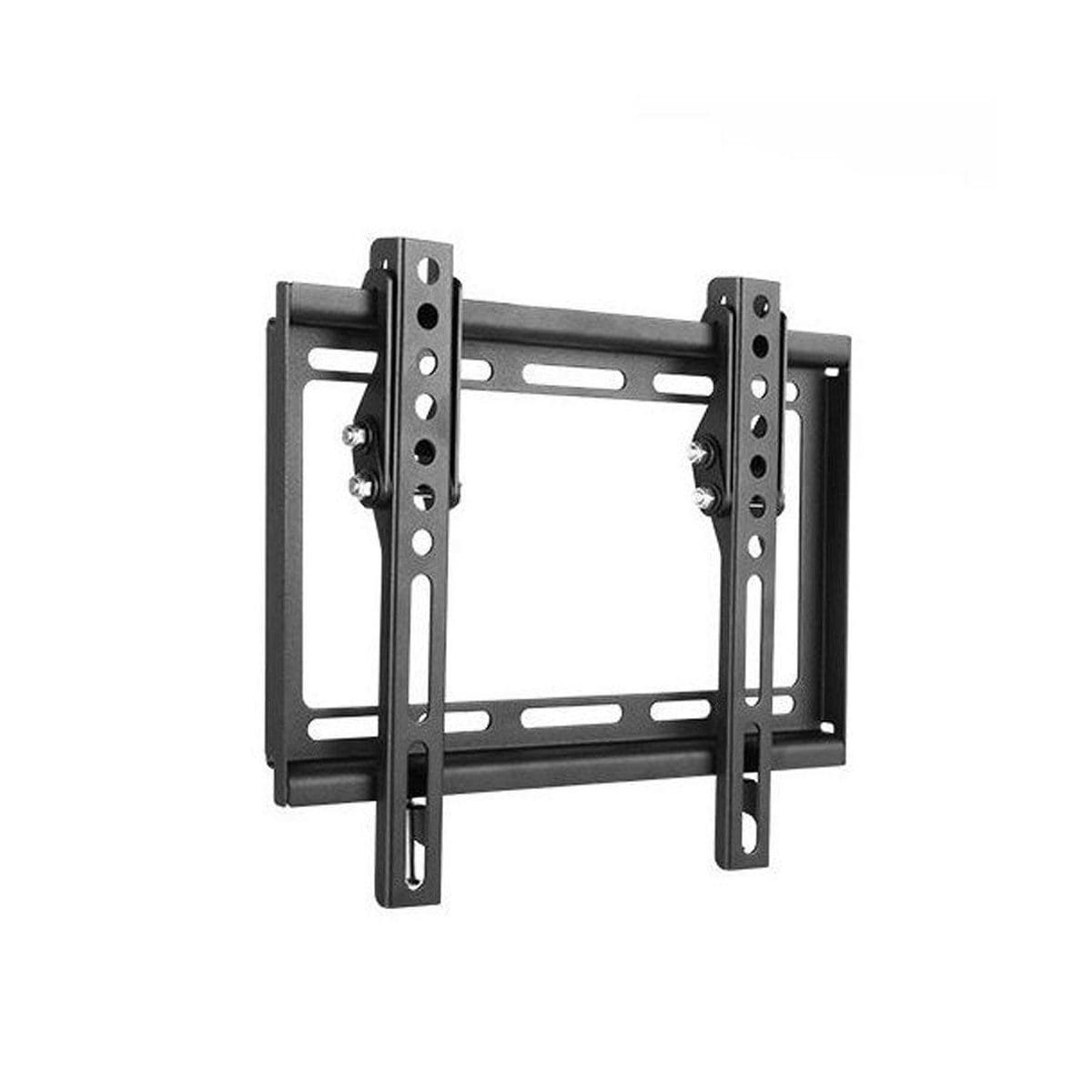

Features:
- Freely tilting allows easy TV angle adjustment
- Super slim design sits just 20.5mm from wall to complement the sleek look of ultra-thin TVs
- Security screws hold TV securely in the wall plate Security screws hold TV securely in the wall plate
- Open architecture provides superior ventilation and easy access for wiring.
- Lateral shift allows TV to slide left and right for perfect.
- Simple construction ensures a quick and easy installation.
Specifications:
- Screen Size Support; 23″ to 42″
- Weight Support: up to 35kg’s
- VESA Compatible 50×50, 75×75, 100×100, 200×100, max: 200×200
- 20.5mm wall to TV distance
- RoHS certified
- Material: Steel
- Metal Sheet Thickness: Wall Plate THK=1.4mm cold-rolled sheet
- Bracket Arm THK=1.4mm cold-rolled sheet
- Wall Plate THK=0.055″ cold-rolled sheet
- Bracket Arm THK=0.055″ cold-rolled sheet
- Surface Finish: Powder Coating
- Strength Tested: 4 Times Approved
- Profile: 20.5mm (0.81″)
- Tilt Range: 0 degrees-8 degrees
- Screen Freely Tilting: Yes
- Installation: Solid Wall
- Panel Type: Detachable Panel
- Wall Plate Type: Fixed Wall Plate
- Cable Management: No
Please Note:
Please let a certified technician mount it for you.
Make sure you find out the weight and mounting hole distance of your TV before mounting.
Have a spirit level, ruler, pencil, screw drivers and the appropriate drill set before mounting.
Measurements and instructions are found at the back of the package.
Please make sure you use the correctly labelled screws when mounting.
Please check that the mount if firmly mounted before installing your TV on it.
Product Code: BRK-KL22-22T
What’s in the box
1 x Main Frame,
2 x Frame Arms with hooks
2 x Screw Packs.
